CJ 6 Spray Booth for Trucks and Buses

CJ 6 Spray Booth for Trucks and Buses

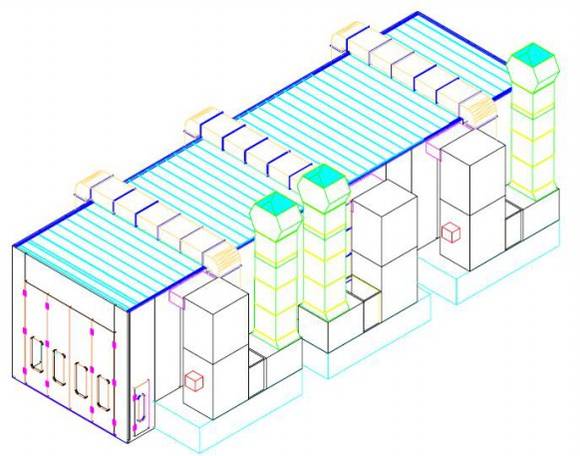

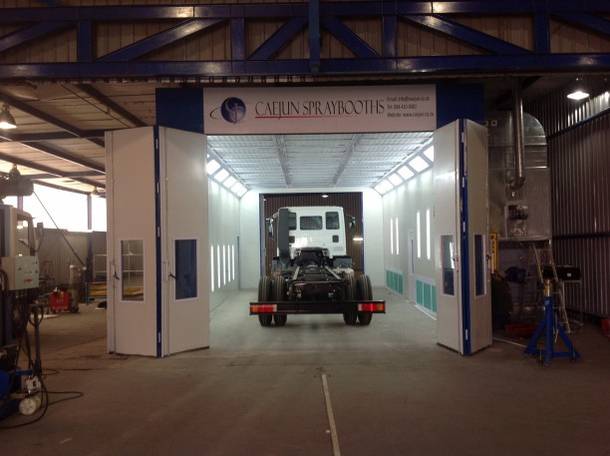

The Model CJ 6 Spray Booth is our largest model that can accomodate trucks and buses and can be manufactured to suite your specific requirements.

Description Data
External Dimensions 15 140 mm (L) x 6640 mm (W) x 5600 mm (H)
Internal Dimension 15 000 mm (L) x 5000 mm (W) x 5000 mm (H)

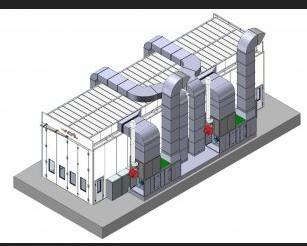

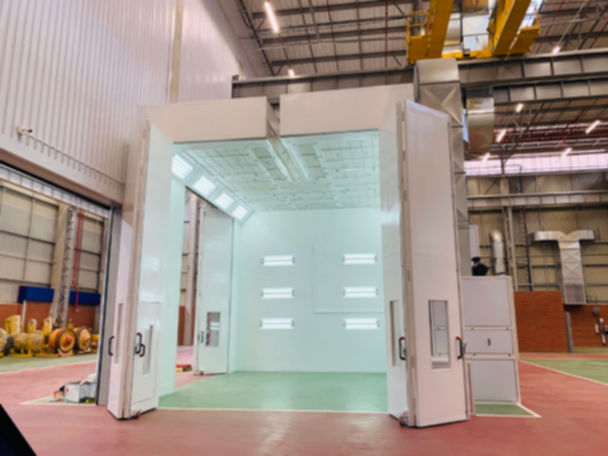

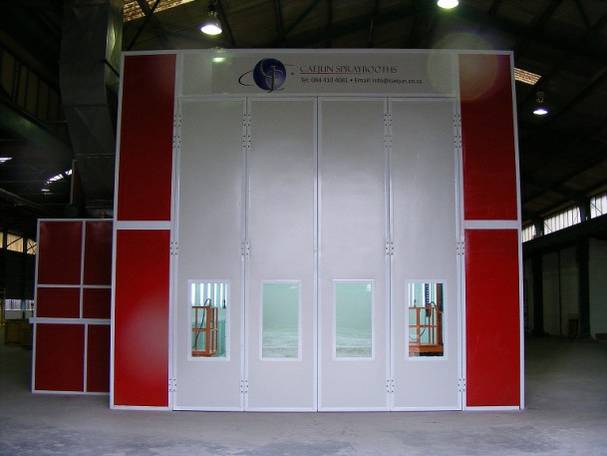

Entrance Dimensions 4 000 mm (W) x 4500 mm (H)

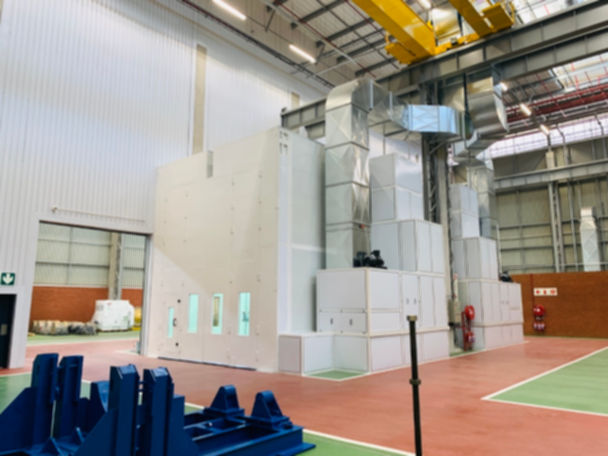

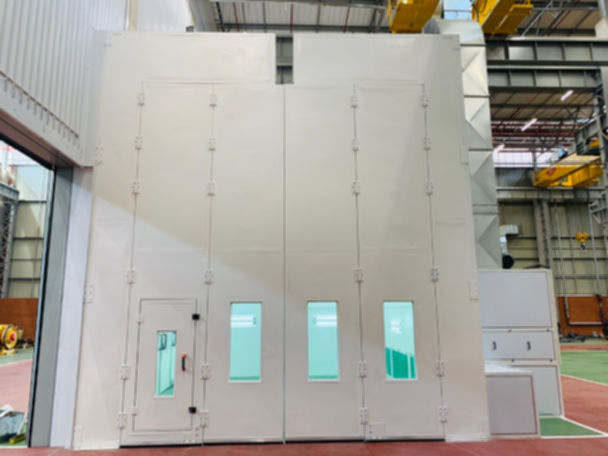

Personnel Door Dimensions 2 x Units: 800mm (W) x 2000mm (H)
Structural Material Manufactured from 70 mm EPS Insulated Panels
Lighting System
  • Ceiling: 18 Fittings: Each 4 x 36 W Tubes
  • Side Lights: 12 Fittings: Each with 2 x 36 W Tubes
  • LED is Optional
Airflow Volume 60 000 m³/hour
Total Power Consumption 50 kW
Power Supply 380V / 50 Hz / 3 Phase
Electrical Control System Included
Ducting 16m Straight Lengths with 1 x Exhaust Bend

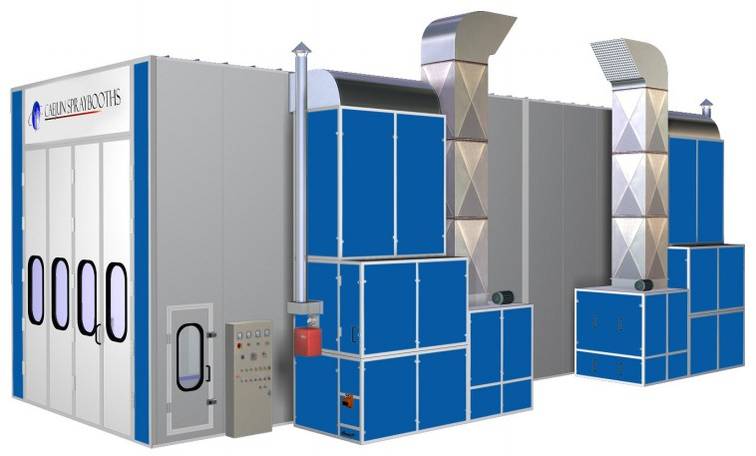

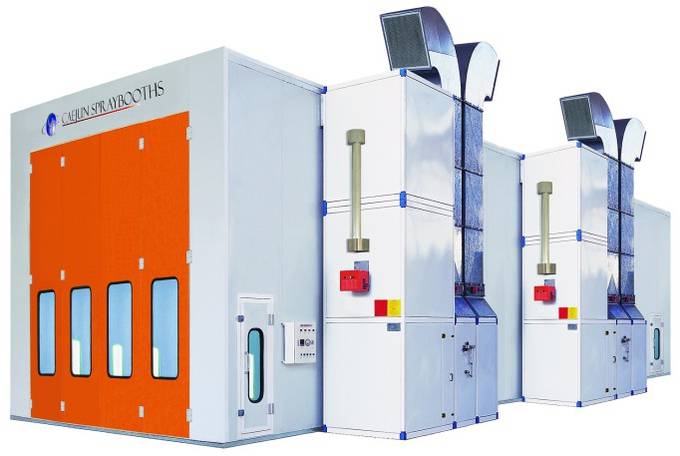

Air Generation System Location
  • Left, Right or Rear – Client to specify (Right by Default).
  • Extraction from one side only.
  • Dual Side Extraction Optional
Intake Fan 2 x 11 kW Turbo Fan
2 x 11 kW Turbo Fan 2 x Riello RG5S Diesel Burners @ Total 520 000 Kcal/Hr
Operating Temperature 60 °C – 80 °C
Filtration System 4 Stage: Pocket Pre-Filter, Ceiling Filter, Fibreglass Floor Filter, Pocket Activated Carbon Final Filter.
Heat Exchanger Stainless Steel 305
  • The dimensions can be changed to meet your requirements.
  • The Extraction Exhaust Systems are equipped with single stage filter systems driven by double intake extraction fans.

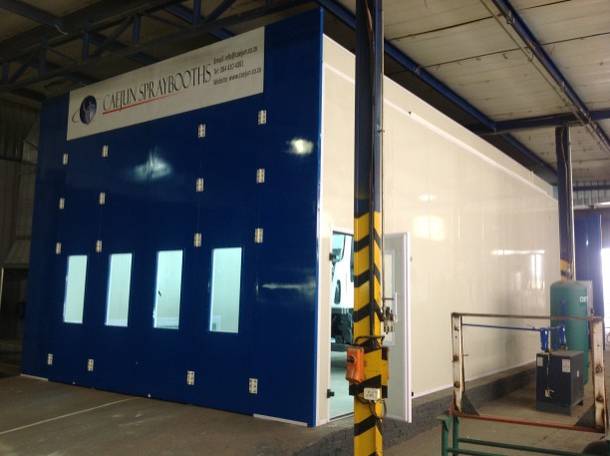

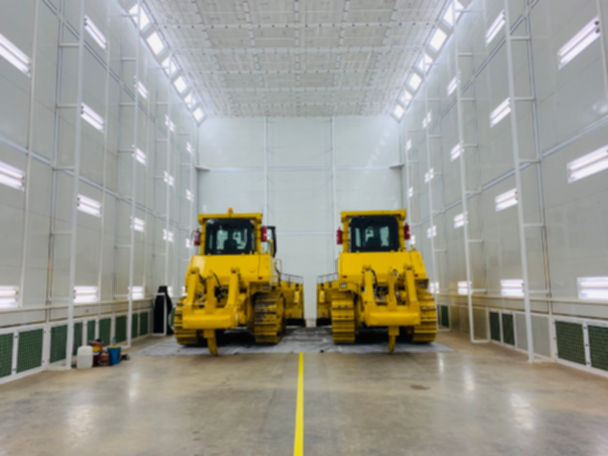

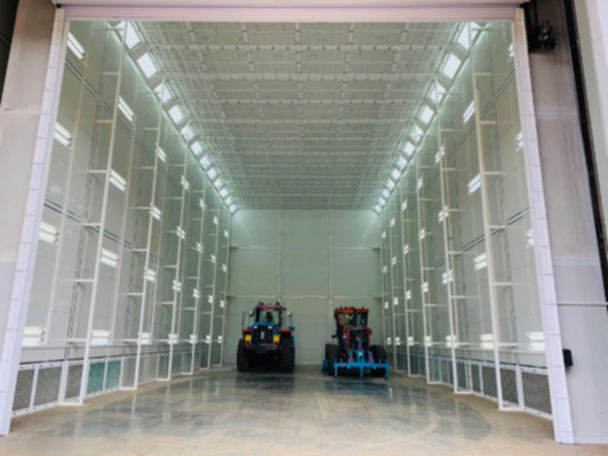

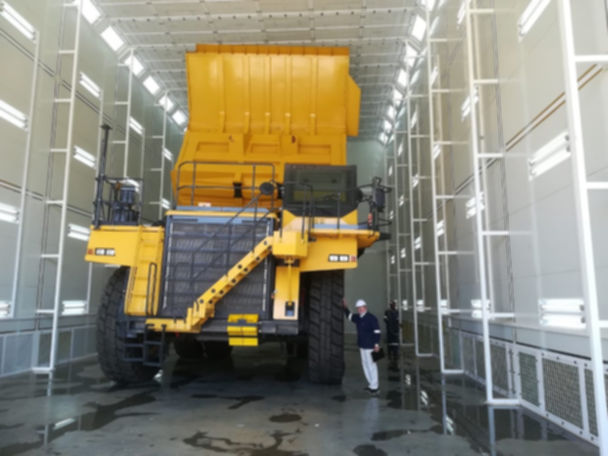

  • This large spray booth is equipped with the required lighting on both sides along the length of the ceiling.

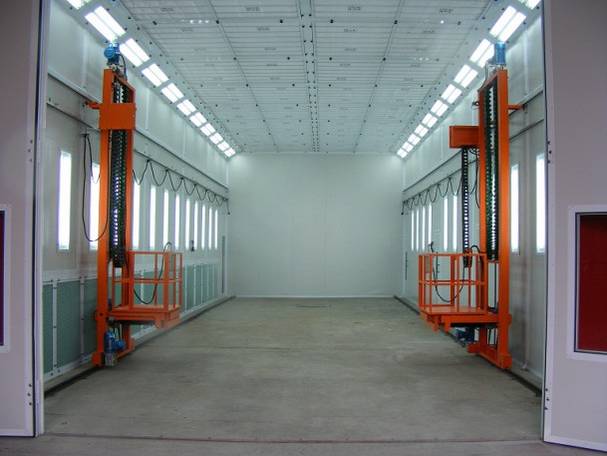

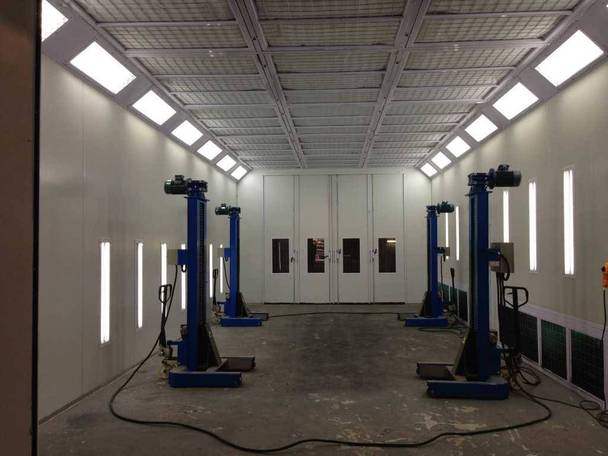

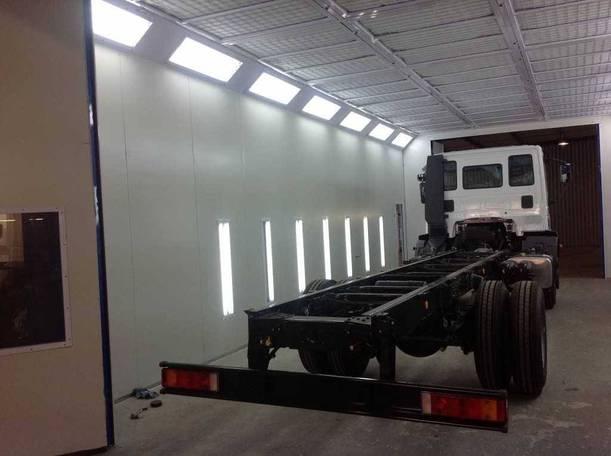

  • Additional lighting is installed along the sides of the walls and centred for enhanced lighting and added security in regards to your paint finish.
  • Additional spray booth lighting can be installed as required.
  • All induced air into the Spray Booth is filtered prior to entering the intake system.
  • The air is induced into the spray booth via the ceiling cavity which is fitted with the highest quality filter media.
  • The spray booth is placed under a positive pressure and all spray and fumes are forced downward into the false basement.
  • Should a side extraction spray booth be required in order to reduce costs by doing the required civil work for the false basement, this can also be designed.
  • The Spray Booth extraction system filters all exhausted air through the floor filters or side filters and ensures optimum performance and enhanced airflow, which results in increased operator comfort and a higher quality paint finish.
  • The spray booth is fitted with a baking system on each of the intake and exhaust systems which is fuelled either by diesel oil or gas, depending on your preference. Additional information about this baking system will be supplied upon request.
  • The Spray Booth is installed with 16m exhaust ducting. Should additional ducting be required in order to exhaust 1m above the roof level of your premises, this could be supplied as well.

See more of this product in our gallery.
